Lead-Free Reflow Oven | TRA

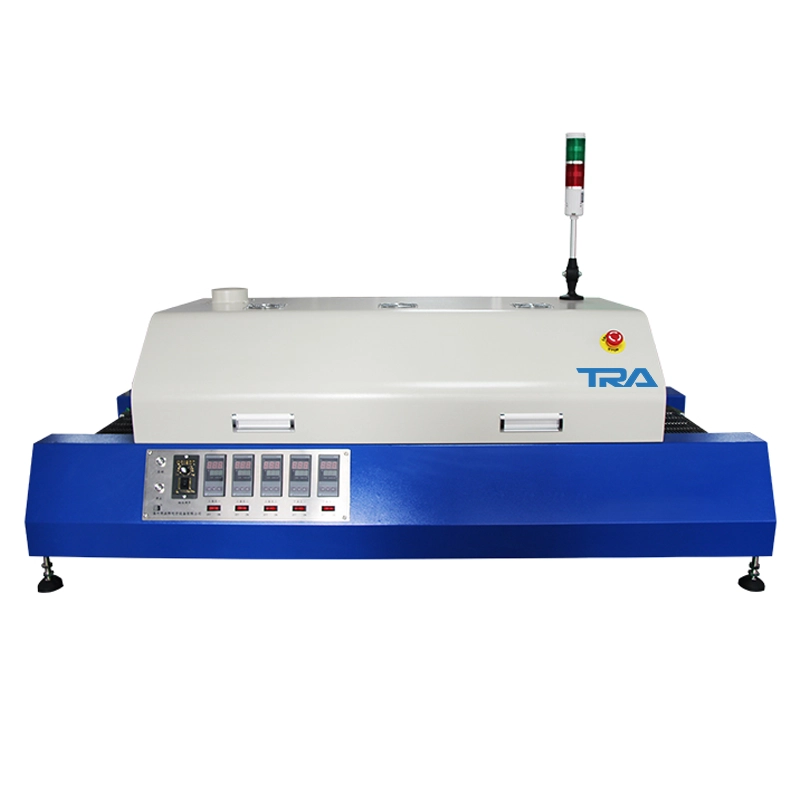

The Lead-free Reflow Oven is a high-performance desktop reflow oven specifically designed for small-scale electronic manufacturing and research and development environments.

• Equipped with five precisely controlled heating zones—three on the top and two on the bottom—it ensures uniform temperature distribution for consistent soldering results across a wide range of PCB sizes and layouts.
• This oven supports lead-free soldering processes, reaching temperatures of up to 400 °C, which meets modern environmental and industry standards.
• Each zone is managed by an independent PID controller, enabling accurate thermal profiling and stability during reflow.
• With a heating length of approximately 960 mm and an adjustable mesh belt conveyor, can accommodate boards up to 280 × 280 mm. It offers a conveyor speed range of 0–2000 mm/min and a warm-up time of about 15 minutes, making it efficient and time-saving for daily operation.
• Power consumption is optimized with startup power around 7 kW and operating power averaging 2.5 kW, ensuring both performance and energy efficiency.
• The system is built with a compact footprint (1700×780×640 mm) and a durable frame, weighing approximately 150 kg, making it suitable for benchtop use without compromising stability.
• Whether you’re assembling prototypes or managing low- to mid-volume production, delivers reliable, repeatable soldering performance in a user-friendly package, backed by standard safety certifications such as CE.
