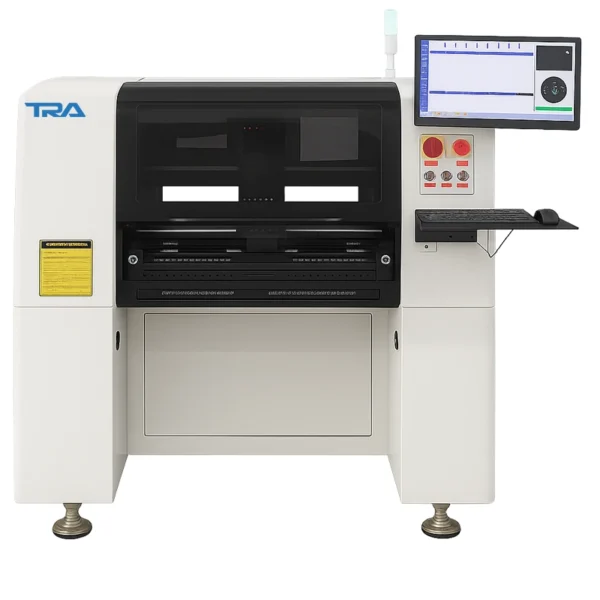

Pick and Place Machine | SMT Assembly Machine
- Multi-head Design: 8 placement heads for faster throughput on mid-to-large PCBs.
- Vision Calibration: Optical system to identify component positions and adjust placement.
- Large XY Travel: Suitable for medium to large PCBs in one setup.
- Feeder Support: Compatible with 8/12/16/24 mm tape feeders and IC trays.
- Software Control: Online/offline programming with support for CSV/TXT output.
- Flexible Component Handling: Up to 40 mm components, with 360° rotational heads.
- Educational and Industrial Use: Suitable for universities, prototyping, small-scale production.
| Feature | Value |
|---|---|
| Number of Heads | 8 simultaneous placement heads |
| Positioning Accuracy | 0.02 mm |
| Mounting Accuracy | ±0.05 mm |
| Theoretical Speed | 30,000 components per hour |
| Practical Speed | Around 16,000 components per hour |
| Max PCB Size (no tray) | 500 × 400 mm |
| Max PCB Size (with tray) | 500 × 260 mm |
| Min PCB Size | 45 × 45 mm |
| Component Size | Max 40 mm width, max 13 mm height |
| X/Y Travel Range | 630 × 700 mm |
| Z-Axis Stroke | 27 mm |
| Rotation Axis (R) | 0 to 360° |
| Vision System | Industrial Ethernet HD cameras |
| Feeder Capacity | Approximately 66–70 slots |
| Drive System | Servo motor with rail motion system |
| PCB Thickness | Up to 3 mm (customizable) |
| PCB Warpage Allowed | ≤2 mm |
| Certifications | CE, FCC, SGS, ISO9001, ISO14001 |
| Warranty | 12 months |
| Machine Dimensions | 1355 × 1300 × 1450 mm |
| Weight | ~780 kg (up to 865 kg with packaging) |
